Smart Ag Products — LoRa Radio

General Notes

  • Private-label options possible
  • Don’t see what you need? Ask here – we may be working on other types of devices or create custom variants for you.

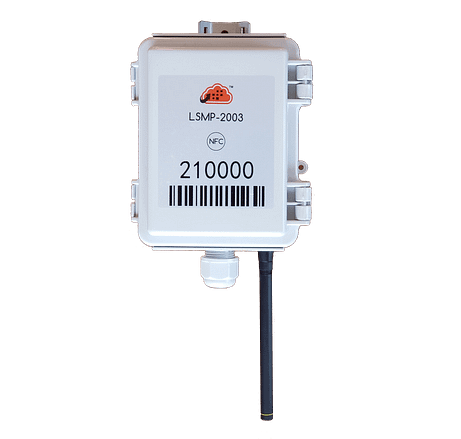

LSMP – Professional LoRa Multi-purpose Telemetry Station

LSMP device is a universal, multi-sensor, battery-operated telemetry interface for LoRaWAN® to popular sensors already being used in agriculture and other industries for monitoring soil conditions, water usage, weather conditions, and other parameters.

(The sensor interfaces and the form factor are identical to CSMP device.)

Sensor Interfaces:

  • SDI-12
  • Protected digital (for pulse counting or trigger alerts)
  • Protected analog voltage
  • 4-20mA current loop
  • 1-Wire

Works with external sensors:

  • Single- and multi-level soil moisture probes from manufacturers such as Aquacheck, Sentek, HSTi, Greenshield, TriBus, Decagon, Meter Group: measuring soil moisture, soil temperature, soil salinity, and humidity
  • Pressure switches and pressure transducers
  • Water/liquid depth sensors
  • Flow meters such as Seametrics, McCrometer
  • Tipping bucket rain gauges
  • Weather stations featuring: temperature, humidity, barometric and vapor pressure, precipitation, leaf wetness, wind speed and direction, solar radiation, and lightning activities
  • Dendrometers
  • Pipe/tank electro-conductivity and temperature sensors

Key features:

  • SDI-12 input
  • three independent, configurable general purpose inputs, protected to 24V
  • auxiliary power supply with selectable output voltage output to power external probes or sensors
  • mobile phone app (iPhone & Android) for easy device configuration using NFC communication. (Remote configuration via LoRaWAN® messages is also supported)
  • built-in magnetic-field presence sensor
  • optional plug-in GPS & accelerometer module for localization, tracking, or movement detection
  • configurable low/high sensor value triggers generating alert messages
  • LoRaWAN® class A radio
  • durable, polycarbonate enclosure
    • 4 1/2″ x 5 1/4″ x 3″
    • weatherproof (NEMA 4X) and UV-stabilized
    • pressure venting
    • universal mounting bracket for easy pole/post/wall installation
  • external, high-quality antenna
  • up to 10 year, field replaceable D-cell lithium battery

Applications

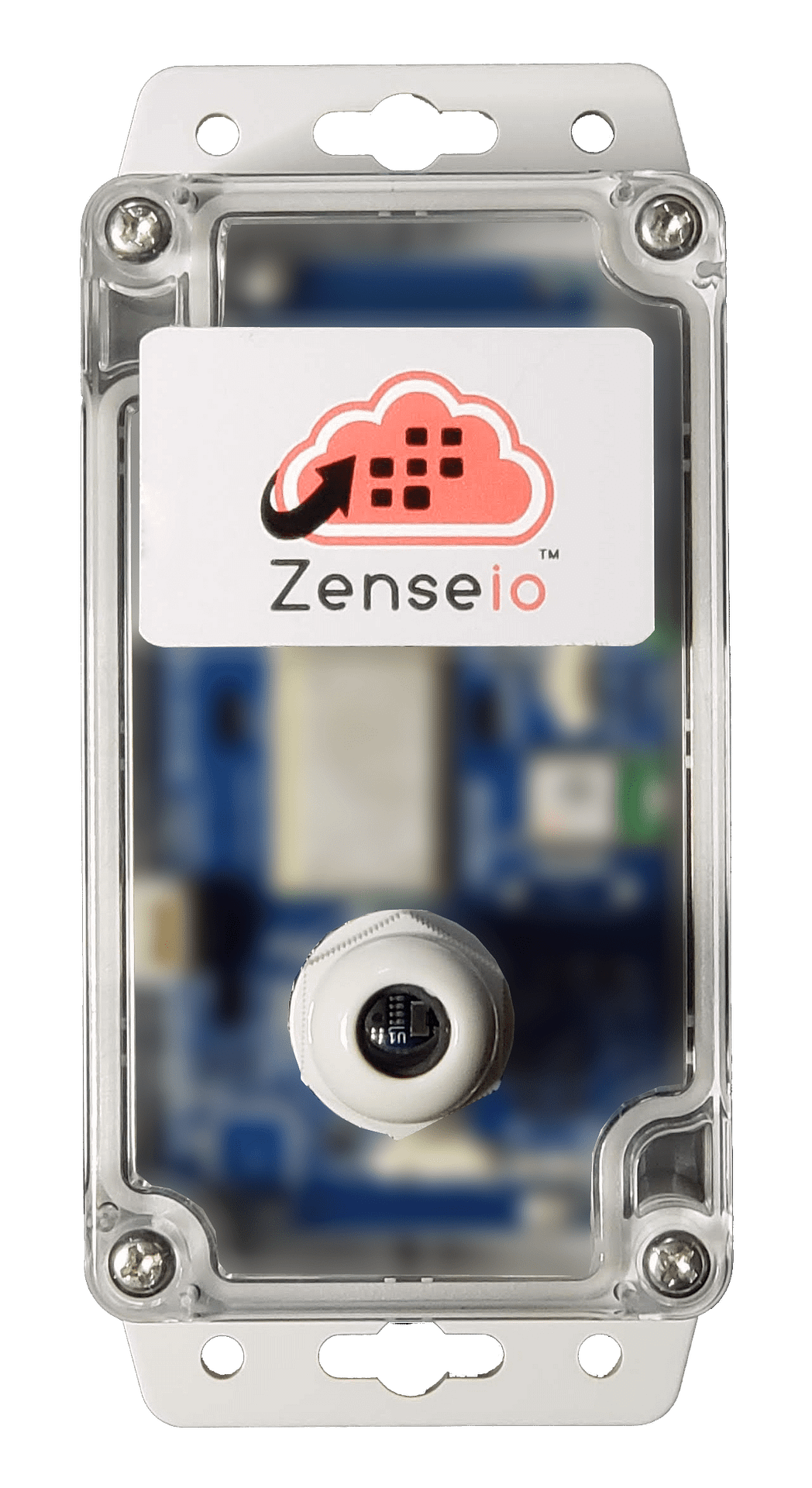

GPI Multi

General purpose input monitoring using LoRa® radio. Connects flow meters, rain buckets, pressure switches, thermistors to cloud applications.

Highlights

  • Electrical and magnetic pulse counting
  • Electrical on/off state detection
  • Magnetic field detection
  • Motion detection
  • Advanced GPS localization
  • Plug & play with any LoRaWAN® network
    • Excellent range – up to 15 miles
    • Cost-effective private or public network
    • North America ISM band (other regions also supported)
  • Super easy to set up
  • Up to 10 years on internal lithium battery
  • Tough polycarbonate (PC) enclosure for outdoor use
    • Built-in mounting brackets
    • Size 4.5” x 2.5” x 1.5”
    • NEMA 4X and UV-stabilized
  • Industrial operating temperature:
    • -40°F to +140°F

Applications

  • Pressure switch valve/actuator monitoring
  • Rainfall monitoring
  • Flow meter telemetry
  • Asset theft/loss detection

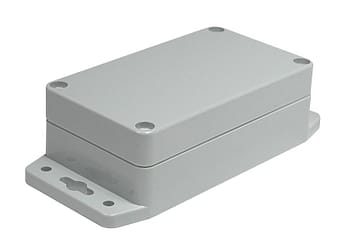

Asset Tracker

Tracks position of an outdoor asset and reports it to cloud application via LoRa® radio.

Highlights

  • Leading edge GNSS (GPS/Glonass/Galileo/Baidu)
  • Movement detection
  • Advanced asset theft detection features
  • Plug & play with any LoRaWAN® network
    • Excellent range – up to 15 miles
    • Cost-effective private or public network
    • North America ISM band (other regions also supported)
  • Super easy to set up
  • Up to 8 years on internal lithium battery
  • Tough polycarbonate (PC) enclosure for outdoor use
    • Built-in mounting brackets
    • Size 4.5” x 2.5” x 1.5”
    • NEMA 4X and UV-stabilized
  • Industrial operating temperature:
    • -40°F to +140°F

Applications

  • Tractor/trailer/equipment monitoring and tracking
  • Center pivot position tracking
  • Asset misuse/theft/loss detection
Sonar

Ultrasonic Ranger

Measures fill level or distance and reports it to cloud applications via LoRa® radio.

Highlights

  • Industrial-grade ultrasonic sensor
    • Max range 12” to 300” (420” with custom option)
    • Distance resolution 0.4” (or 0.04” with custom option)
    • Air temperature compensation
    • Several beam pattern options for different applications (custom options)
    • Sealant for chemical resistance (custom option)
  • Motion detection
  • Advanced GPS localization
  • Plug & play with any LoRaWAN® network
    • Excellent range – up to 15 miles
    • Cost-effective public or private network
    • North America ISM band (other regions also supported)
  • Super easy to setup and maintain
  • Up to 8 years on internal lithium battery
  • Tough polycarbonate enclosure for outdoor use.
    • Size 4.5” x 2.5” x 4”
    • NEMA 4X and UV-stabilized
  • Industrial operating temperature:
    • -40°F to +140°F

Applications

  • Fertilizer tank level monitoring
  • Well/pond level monitoring
  • Flood detection
  • Snow level monitoring
  • Presence detection
