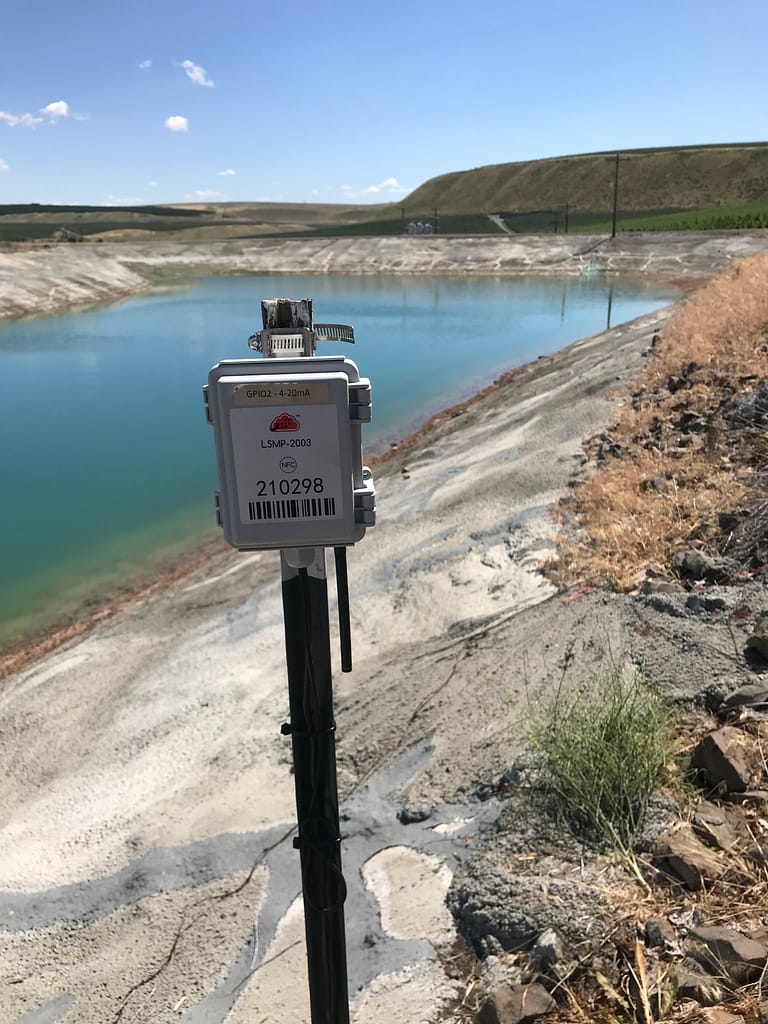

LSMP2 – Professional Multi-purpose Telemetry Station

LSMP2 device is a universal, multi-sensor, battery-operated LoRaWAN telemetry interface to popular sensors already being used in agriculture and other industries for monitoring soil conditions, water usage, weather conditions, and other parameters.

Sensor Interfaces:

• SDI-12
• Protected digital (for pulse counting or trigger alerts)
• Protected analog voltage
• 4-20mA current loop
• 1-Wire

Works with external sensors:

• Single- and multi-level soil moisture probes from manufacturers such as Sentek, HSTi, Greenshield: measuring soil moisture, soil temperature, soil salinity, and humidity
• Pressure switches and pressure transducers
• Water/liquid depth sensors
• Flow meters such as Seametrics, McCrometer
• Tipping bucket rain gauges
• Weather stations featuring: temperature, humidity, barometric and vapor pressure, precipitation, leaf wetness, wind speed and direction, solar radiation, and lightning activities
• Dendrometers
• Pipe/tank electro-conductivity and temperature sensors

Key features:

• SDI-12 input
• three independent, configurable general purpose inputs, protected to 24V
• auxiliary power supply with selectable output voltage output to power external probes or sensors
• Android app for easy device configuration using NFC communication. (Remote configuration via LoRaWAN messages is also supported)
• built-in magnetic-field presence sensor
• optional plug-in GPS & accelerometer module for localization, tracking, or movement detection
• configurable low/high sensor value triggers generating alert messages
• LoRaWAN class A radio
• durable, polycarbonate enclosure
  • 4 1/2″ x 5 1/4″ x 3″
  • weatherproof (NEMA 4X) and UV-stabilized
  • pressure venting
  • universal mounting bracket for easy pole/post/wall installation
• external, high-quality antenna
• up to 10 year, field replaceable D-cell lithium battery

Applications

• Soil moisture management
• Irrigation system monitoring
• Flow meter telemetry
• Well/pond level monitoring
• Weather station
• Leaf wetness monitoring
• Tree trunk, fruit size monitoring

LSMP1 – Soil Moisture Station

Connects professional soil probes, rain buckets, flow meters, and pressure switches with cloud applications using LoRa radio.

Highlights

• Simple plug-and-play with the most popular brands from (Sentek, HSTi, Aquacheck, Greenshield)
• Generates power to the probe – no need for external power supply
• Monitors tipping rain buckets, flow meters, or pressure-switches (dry-contacts)
• Plug & play with any LoRaWAN network
  • Excellent range – up to 25 miles
  • Cost-effective private or public network
  • North America ISM band (other regions also supported)
• Super easy to set up
  • works out-of-box for most cases
  • reconfiguration with a smartphone app
• Up to 8 years on internal lithium battery
• Tough polycarbonate (PC) enclosure for outdoor use
  • Built-in mounting brackets
  • Size 4.5” x 3.5” x 2.25”
  • NEMA 4X and UV-stabilized
• Industrial operating temperature:
  • -40°F to +140°F
• Turn-key water conservation and management services from grower-trusted partners

Applications

• Soil moisture management
• Irrigation system monitoring
• Flow meter telemetry
• Weather station
• Tree trunk, fruit size monitoring

GPI Multi

General purpose input monitoring using LoRa radio. Connects flow meters, rain buckets, pressure switches, thermistors to cloud applications.

Highlights

• Electrical and magnetic pulse counting
• Electrical on/off state detection
• Magnetic field detection
• Motion detection
• Advanced GPS localization
• Plug & play with any LoRaWAN network
  • Excellent range – up to 15 miles
  • Cost-effective private or public network
  • North America ISM band (other regions also supported)
• Super easy to set up
• Up to 10 years on internal lithium battery
• Tough polycarbonate (PC) enclosure for outdoor use
  • Built-in mounting brackets
  • Size 4.5” x 2.5” x 1.5”
  • NEMA 4X and UV-stabilized
• Industrial operating temperature:
  • -40°F to +140°F

Applications

• Pressure switch valve/actuator monitoring
• Rainfall monitoring
• Flow meter telemetry
• Asset theft/loss detection

Asset Tracker

Tracks position of an outdoor asset and reports it to cloud application via LoRa radio.

Highlights

• Leading edge GNSS (GPS/Glonass/Galileo/Baidu)
• Movement detection
• Advanced asset theft detection features
• Plug & play with any LoRaWAN network
  • Excellent range – up to 15 miles
  • Cost-effective private or public network
  • North America ISM band (other regions also supported)
• Super easy to set up
• Up to 8 years on internal lithium battery
• Tough polycarbonate (PC) enclosure for outdoor use
  • Built-in mounting brackets
  • Size 4.5” x 2.5” x 1.5”
  • NEMA 4X and UV-stabilized
• Industrial operating temperature:
  • -40°F to +140°F

Applications

• Tractor/trailer/equipment monitoring and tracking
• Center pivot position tracking
• Asset misuse/theft/loss detection

Ultrasonic Ranger

Measures fill level or distance and reports it to cloud applications via LoRa radio.

Highlights

• Industrial-grade ultrasonic sensor
  • Max range 12” to 300” (420” with custom option)
  • Distance resolution 0.4” (or 0.04” with custom option)
  • Air temperature compensation
  • Several beam pattern options for different applications (custom options)
  • Sealant for chemical resistance (custom option)
• Motion detection
• Advanced GPS localization
• Plug & play with any LoRaWAN network
  • Excellent range – up to 15 miles
  • Cost-effective public or private network
  • North America ISM band (other regions also supported)
• Super easy to setup and maintain
• Up to 8 years on internal lithium battery
• Tough polycarbonate enclosure for outdoor use.
  • Size 4.5” x 2.5” x 4”
  • NEMA 4X and UV-stabilized
• Industrial operating temperature:
  • -40°F to +140°F

Applications

• Fertilizer tank level monitoring
• Well/pond level monitoring
• Flood detection
• Snow level monitoring
• Presence detection
